Mini Versailles

 Sample

Planks from: £139
Herringbone from: £143
Chevron from: £166
Panels from: £311
Prices exclude VAT

SKU: Panel-ULCP-SCA-Walnut-C108-1 Categories: ,
Share
thumbnail

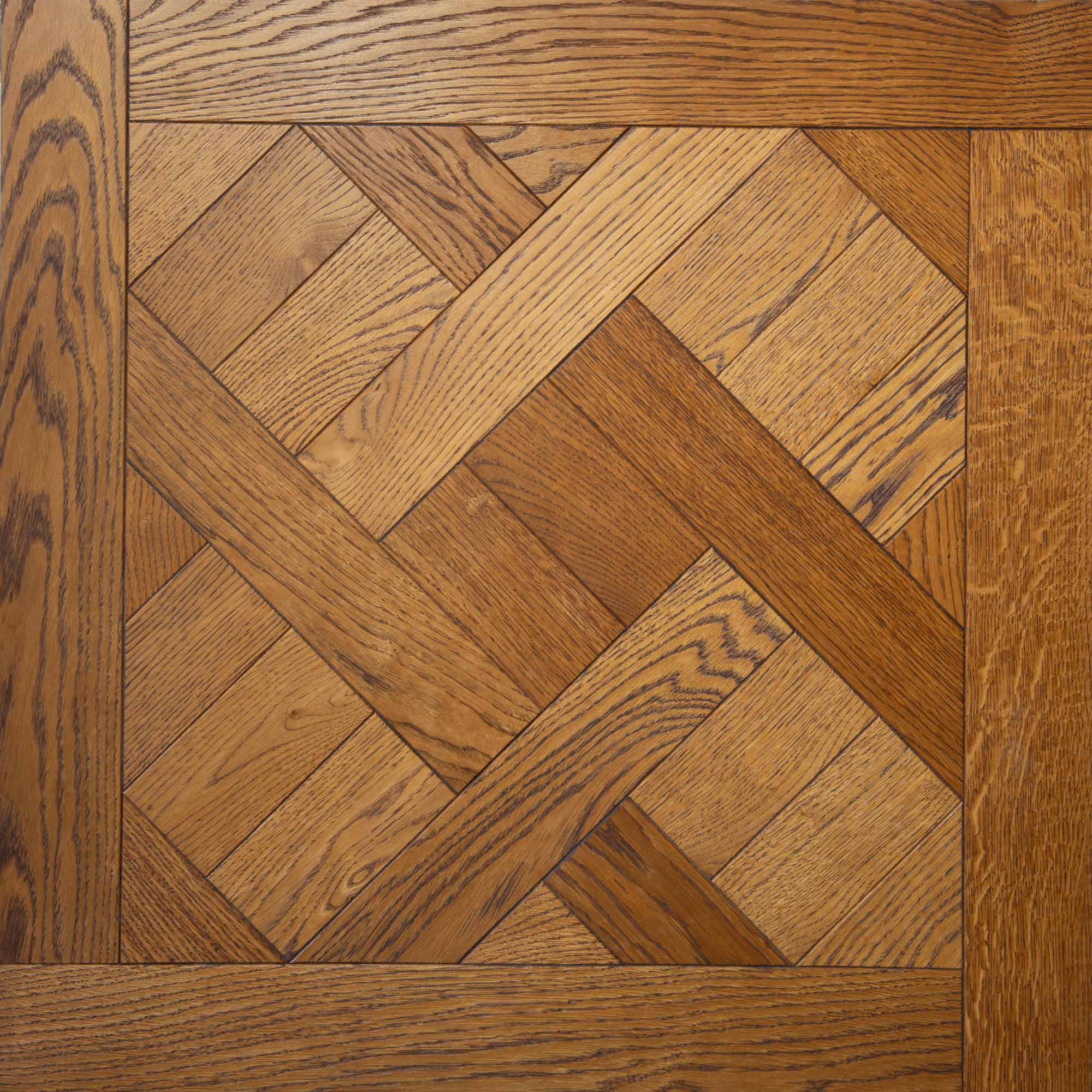

Mini Versailles

Urbane Living have a large range of high quality herringbone, chevron and panel parquet flooring available in many styles and colours (the majority of our plank flooring is available in herringbone or chevron). Please visit our showroom to view a large selection of display boards and expert advice.

Panel Size 700 x 700 x 15mm

Available in all finishes and wood species

Micro bevelled on outside edges, option to have bevels on internal elements (as shown)

3 Layer Super Wide

3 layer 20mm wood floor structure

Structure



5mm Oak wear layer
10mm Fir core layer
5mm Oak balance layer

Width x Length



700-800 x 2500 – 4500mm
390/440/500 x 2000 – 4000mm
390 x 2000 – 4000mm

Thickness



20mm

Grades



Natural

3 Layer Classic

3 layer 15mm wood flooring structure

Structure



5mm Oak wear layer
10mm or 5mm Fir core layer
5mm Oak balance layer

Width x Length



240/290/340 x 2000 – 4000mm
340 x 2000 – 4000mm
290 x 1800 – 4000mm
240 x 1800 – 4000mm
135/165/192 x 1200 – 2400mm
192 x 1200 – 2400mm
165 x 1200 – 2400mm
135 x 1200 – 2400mm
Thermo Oak widths 130/160/185mm

Thickness



15 or 20mm

Grades



Prime A to 192mm
Prime B to 290mm
Rustic A to 290mm
Rustic AB/Natural all widths

2 Layer Classic

Structure



4.2mm Oak wear layer
10.8mm Birch ply blance layer

Width x Length



135 x 1000 – 1800mm
65 x 1200-1800mm

Thickness



15mm

Grades



Prime A, Prime B, Rustic A

2 Layer Thin

Structure



4.2mm Oak wear layer
6.8mm Birch ply blance layer

Width x Length



200 x 1200 – 2400mm

Thickness



11mm

Grades



Prime A, Prime B, Rustic A

Herringbone

Herringbone Pattern

2 Layer
Structure

Width x Length





Thickness



4.2mm Oak wear layer
6.8mm Birch ply blance layer

65 x 400-600mm
90 x 600-800mm
135 x 600-1000mm
240 x 720mm

11 or 15mm

Chevron

Chevron Pattern

2 Layer
Structure

Width x Length


Thickness

Angle



4.2mm Oak wear layer
6.8mm Birch ply blance layer

65 x 400-600mm
90 x 600-800mm
135 x 600-1000mm

11 or 15mm

45° / 30° /60°

Finish: Primer coat and 8 layers of hard wearing water based lacquer

Customisations: This product can be customised with various options such as large bevels, rounded bevels, hand worked surface etc

Grades: Prime A, Prime B, Rustic A, Rustic AB

Prime A: Healthy knots (filled) with a maximum of 3 mm. No open defects, minimal colour variation. No sapwood and no end cracks allowed.

Prime B: Healthy knots (filled) with a maximum of 8 mm. No open defects, slight colour variation. No sapwood and no end cracks allowed.

Rustic A: Healthy knots (filled) with a maximum of ± 35 mm. Less colour variation. No sapwood and no end cracks allowed.

Rustic AB: Healthy knots (filled) with a maximum of ± 60 mm (240 mm and wider up to ± 80 mm). Colour variation allowed. Occasionally a little sapwood permitted and end cracks of max. 100 mm allowed.

Formats:

Widths:

diagram showing plank widths available

Lengths:

diagram showing plank lengths
