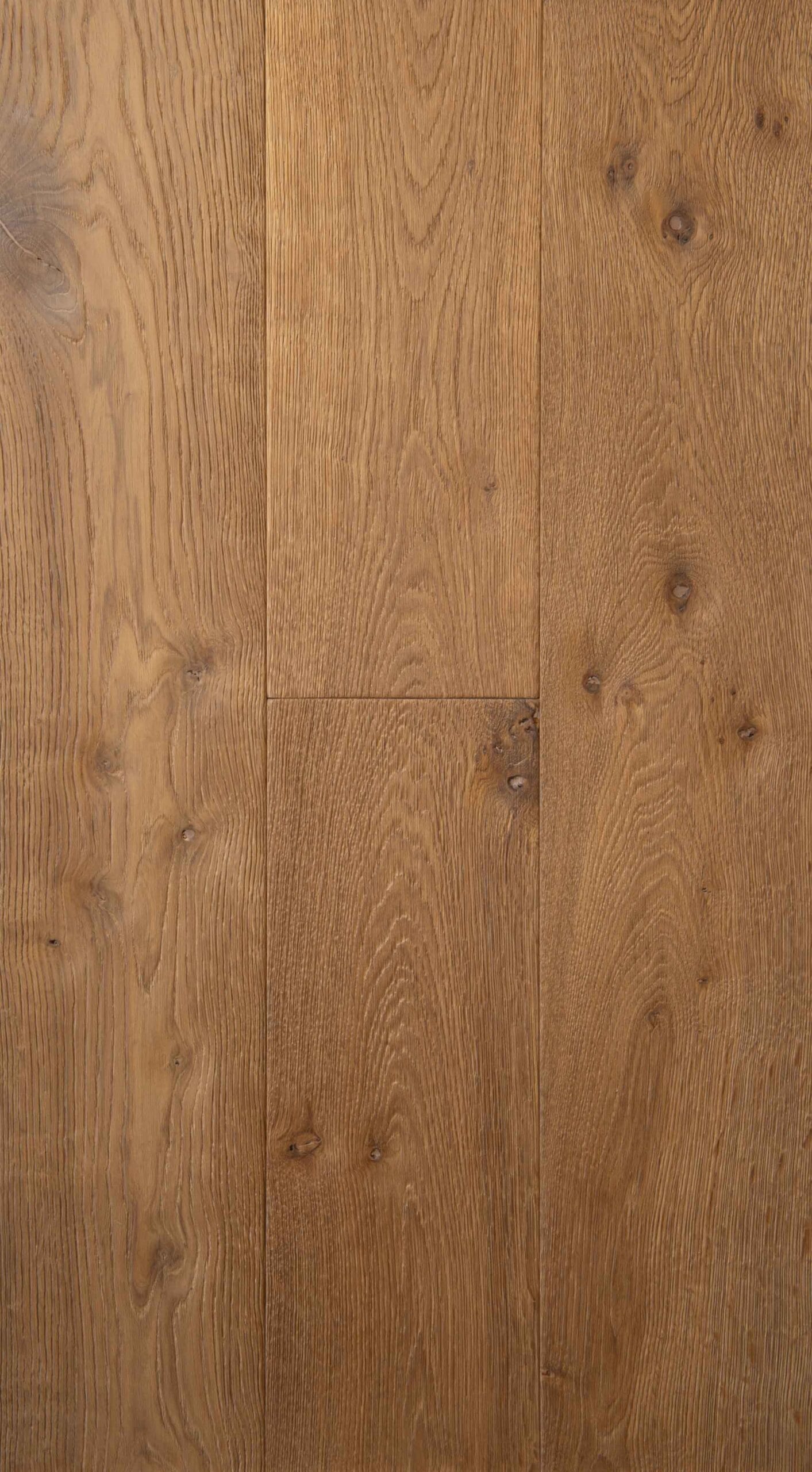

Medium Thermo Cadogan Time Worn 3

Aged Wood Flooring - Time Worn Finish Options

Time Worn 1

An incredibly realistic aged floor that reproduces the shrunken timber around knots that take centuries to evolve. Hand made soft rounded bevels and subtle surface textures make this floor truly unique. The surface is further enhanced with standard brushing of the surface with a wire brush to remove softer fibres and creating a natural texture of the surface that follows the grain of the timber. Suitable for rustic grades only and plank widths over 240mm wide

Time Worn 2

Similar to Time Worn 1 treatment but with a much more subtle unevenness. The surface is further enhanced with standard brushing of the surface with a wire brush to remove softer fibers and creating a natural texture of the surface that follows the grain of the timber. The edges of the plank on all 4 sides are made with standard machine made bevels. Suitable for rustic grades only and plank widths up to 290mm wide. Also suitable in Herringbone and Chevron floors.

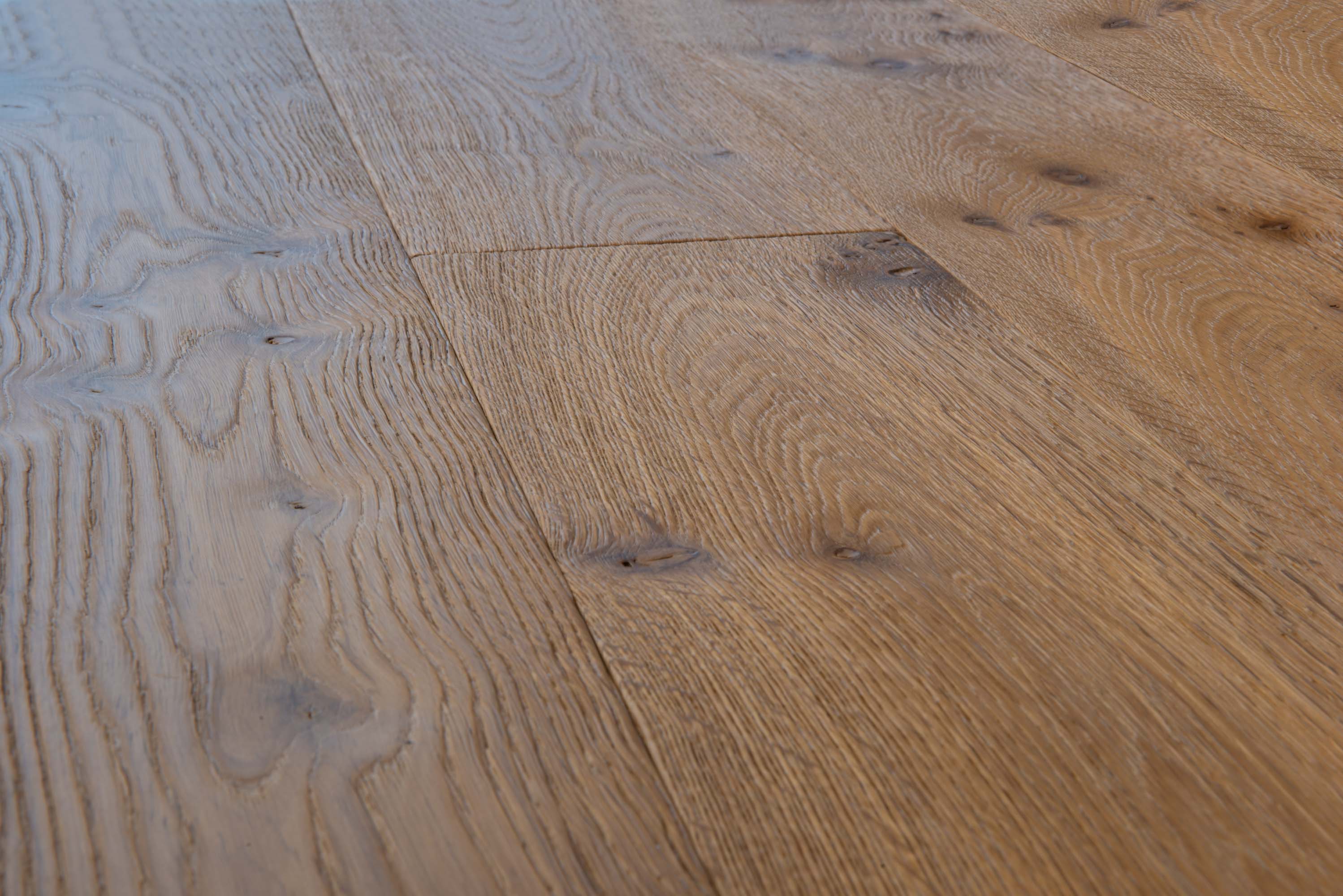

Time Worn 3

This treatment is achieved by hand working the timber to make deep unevenness of the surface around knots. The surface is further enhanced with heavy brushing of the surface with a wire brush to remove softer fibres and creating a natural texture of the surface that follows the grain of the timber. The edges of the plank on all 4 sides are made with standard machine made bevels. Suitable for rustic grades only and plank widths up to 500mm wide. Also suitable in Herringbone and Chevron floors.

Time Worn 4

Master craftsmen (and craftswomen) hand scrape the surface of the timber with a traditional hand plane as would have been used in centuries past. The surface has an irregular antique rustic look. Additional treatments include hand working wormhole effect to the floor. The edges of the plank on all 4 sides are made with standard machine made bevels. Suitable for rustic grades only and plank widths up to 500mm wide. Also suitable in Herringbone and Chevron floors.

3 Layer Super Wide

Structure



5mm Oak wear layer
10mm Fir core layer
5mm Oak balance layer

Width x Length



700-800 x 2500 – 4500mm
390/440/500 x 2000 – 4000mm
390 x 2000 – 4000mm

Thickness



20mm

Grades



Natural

3 Layer Classic

Structure



5mm Oak wear layer
10mm or 5mm Fir core layer
5mm Oak balance layer

Width x Length



240/290/340 x 2000 – 4000mm
340 x 2000 – 4000mm
290 x 1800 – 4000mm
240 x 1800 – 4000mm
135/165/192 x 1200 – 2400mm
192 x 1200 – 2400mm
165 x 1200 – 2400mm
135 x 1200 – 2400mm
Thermo Oak widths 130/160/185mm

Thickness



15 or 20mm

Grades



Prime A to 192mm
Prime B to 290mm
Rustic A to 290mm
Rustic AB/Natural all widths

2 Layer Classic

Structure



4.2mm Oak wear layer
10.8mm Birch ply blance layer

Width x Length



135 x 1000 – 1800mm
65 x 1200-1800mm

Thickness



15mm

Grades



Prime A, Prime B, Rustic A

2 Layer Thin

Structure



4.2mm Oak wear layer
6.8mm Birch ply blance layer

Width x Length



200 x 1200 – 2400mm

Thickness



11mm

Grades



Prime A, Prime B, Rustic A

Herringbone

2 Layer
Structure

Width x Length





Thickness



4.2mm Oak wear layer
6.8mm Birch ply blance layer

65 x 400-600mm
90 x 600-800mm
135 x 600-1000mm
240 x 720mm

11 or 15mm

Chevron

2 Layer
Structure

Width x Length

Thickness

Angle



4.2mm Oak wear layer
6.8mm Birch ply blance layer

65 x 400-600mm
90 x 600-800mm
135 x 600-1000mm

11 or 15mm

45° / 30° /60°

Finish: Primer coat and 8 layers of hard wearing water based lacquer

Customisations: This product can be customised with various options such as large bevels, rounded bevels, hand worked surface etc

Grades: Prime A, Prime B, Rustic A, Rustic AB

Prime A: Healthy knots (filled) with a maximum of 3 mm. No open defects, minimal colour variation. No sapwood and no end cracks allowed.

Prime B: Healthy knots (filled) with a maximum of 8 mm. No open defects, slight colour variation. No sapwood and no end cracks allowed.

Rustic A: Healthy knots (filled) with a maximum of ± 35 mm. Less colour variation. No sapwood and no end cracks allowed.

Rustic AB: Healthy knots (filled) with a maximum of ± 60 mm (240 mm and wider up to ± 80 mm). Colour variation allowed. Occasionally a little sapwood permitted and end cracks of max. 100 mm allowed.

Prime A

Prime B

Rustic A

Rustic AB

Formats:

Fixed Width Plank

Mixed Width Plank

Herringbone

Chevron

Design Panels

Custom Shapes

Widths:

Lengths:
