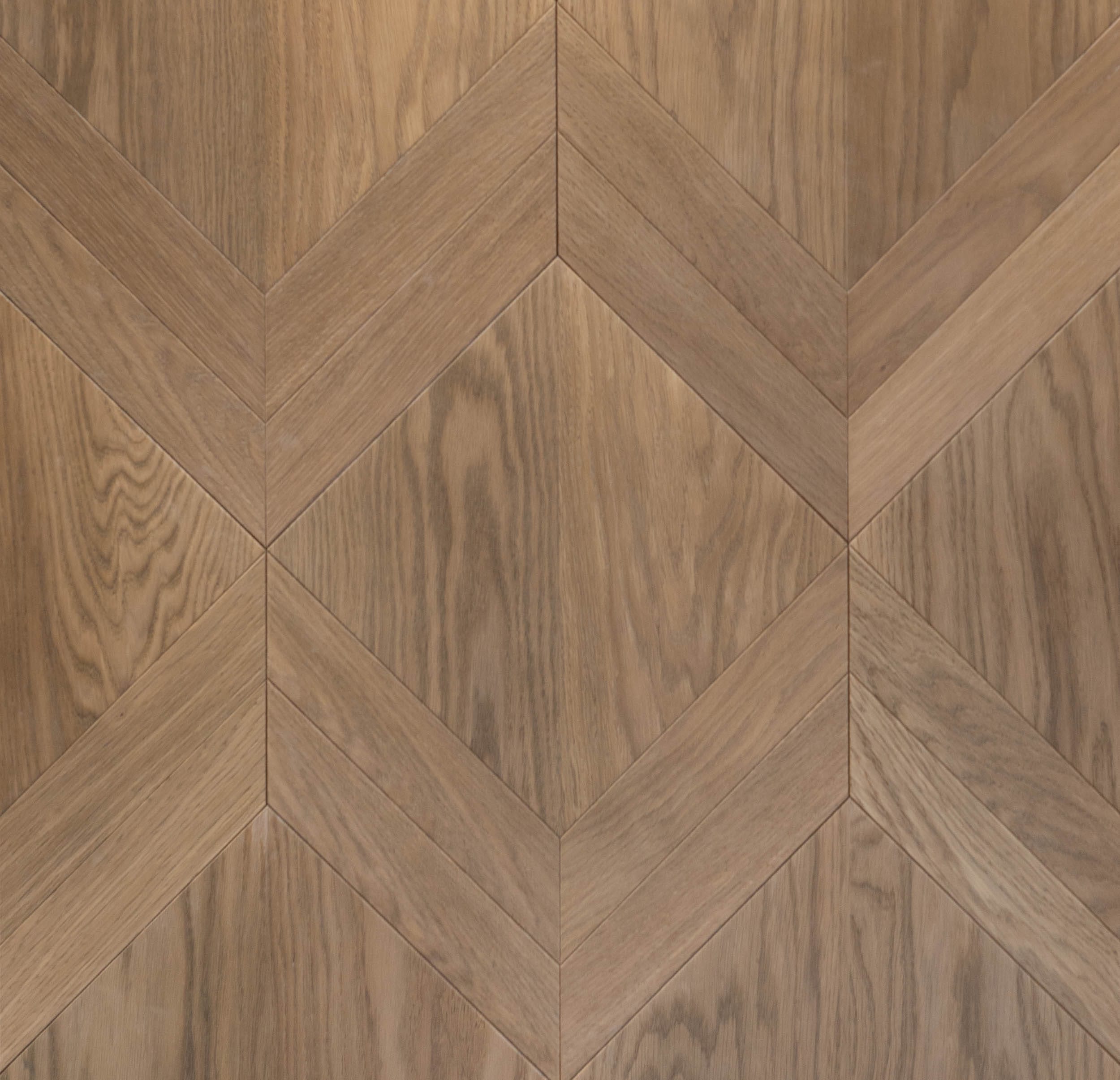

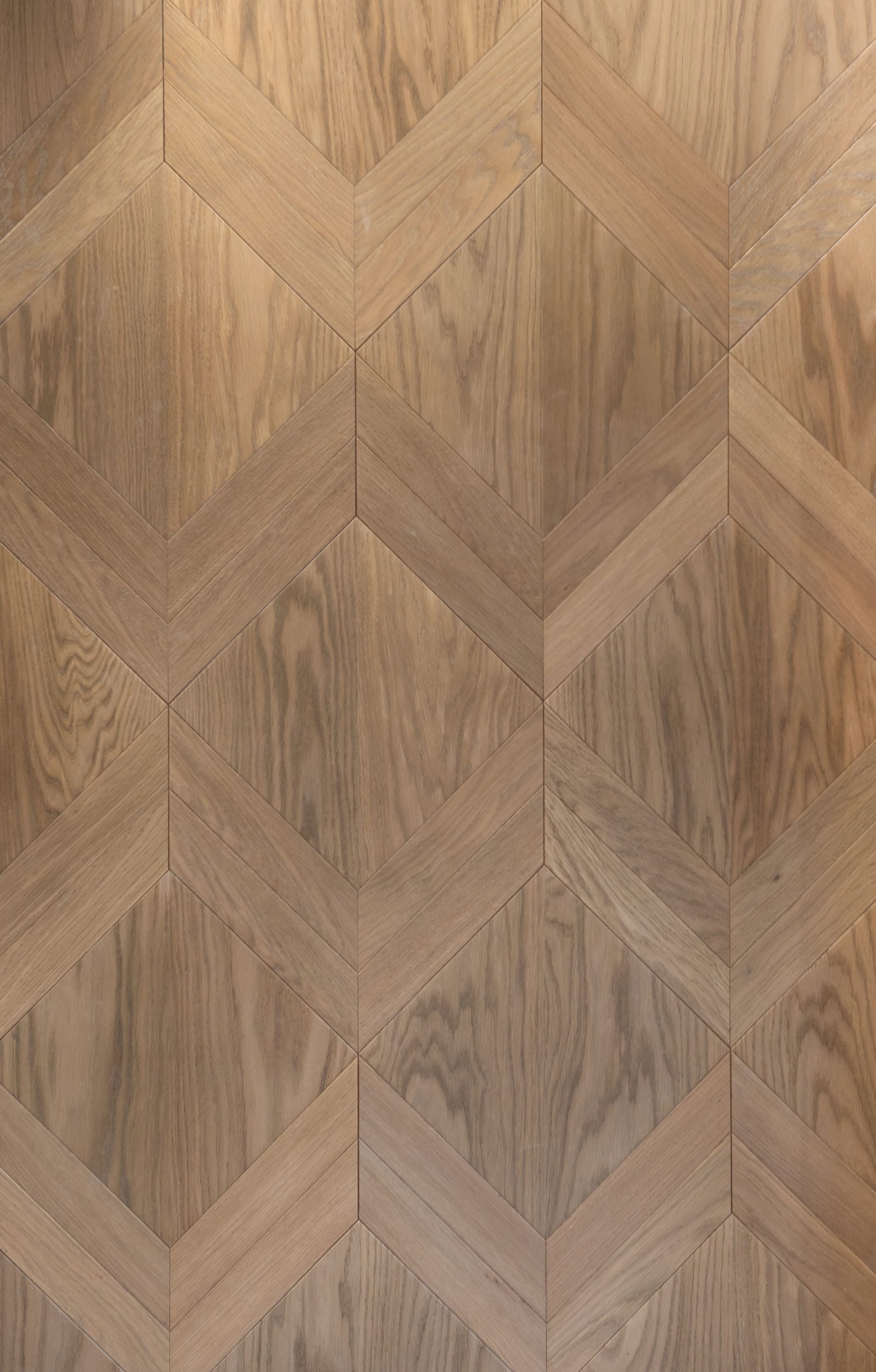

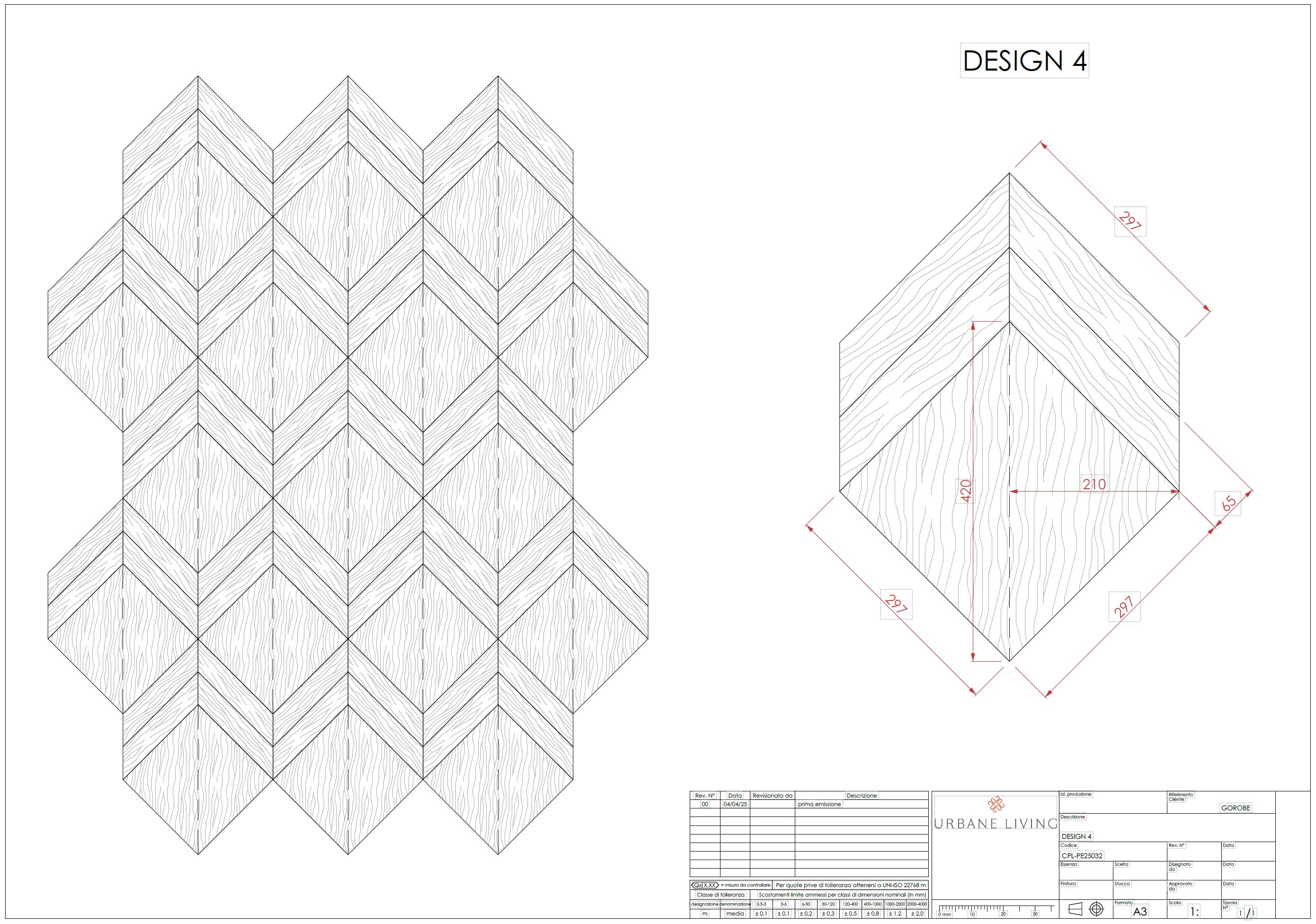

Diamond Design 4 Ritz Oak

This diamond design provides a simple modern pattern. Ideal for residential and retail interior design. Shown here in Ritz Oak with warm brown tones with subtle variation in colour. Engineered Ritz Oak uses top quality old growth oaks for a more stable floor. Finished with a brushed surface, reactive surface smoked colour treatment and hard wearing satin matt lacquer finish. This is one of our more premium oak flooring products that is a favourite with some of our interior designers. Warm oak tones that provide a contemporary look to your home. Raffles oak is available in very wide choice of formats from super wide oak planks up to 800mm wide, herringbone, chevron, panels through to custom inlay designs. Talk to one of our specialist wood flooring experts who can guide you through to selecting the premium oak flooring and the format that works for your project.

3 Layer Super Wide

Structure



5mm Oak wear layer
10mm Fir core layer
5mm Oak balance layer

Width x Length



700-800 x 2500 – 4500mm
390/440/500 x 2000 – 4000mm
390 x 2000 – 4000mm

Thickness



20mm

Grades



Natural

3 Layer Classic

Structure



5mm Oak wear layer
10mm or 5mm Fir core layer
5mm Oak balance layer

Width x Length



240/290/340 x 2000 – 4000mm
340 x 2000 – 4000mm
290 x 1800 – 4000mm
240 x 1800 – 4000mm
135/165/192 x 1200 – 2400mm
192 x 1200 – 2400mm
165 x 1200 – 2400mm
135 x 1200 – 2400mm
Thermo Oak widths 130/160/185mm

Thickness



15 or 20mm

Grades



Prime A to 192mm
Prime B to 290mm
Rustic A to 290mm
Rustic AB/Natural all widths

2 Layer Classic

Structure



4.2mm Oak wear layer
10.8mm Birch ply blance layer

Width x Length



135 x 1000 – 1800mm
65 x 1200-1800mm

Thickness



15mm

Grades



Prime A, Prime B, Rustic A

2 Layer Thin

Structure



4.2mm Oak wear layer
6.8mm Birch ply blance layer

Width x Length



200 x 1200 – 2400mm

Thickness



11mm

Grades



Prime A, Prime B, Rustic A

Herringbone

2 Layer
Structure

Width x Length





Thickness



4.2mm Oak wear layer
6.8mm Birch ply blance layer

65 x 400-600mm
90 x 600-800mm
135 x 600-1000mm
240 x 720mm

11 or 15mm

Chevron

2 Layer
Structure

Width x Length

Thickness

Angle



4.2mm Oak wear layer
6.8mm Birch ply blance layer

65 x 400-600mm
90 x 600-800mm
135 x 600-1000mm

11 or 15mm

45° / 30° /60°

Finish: Primer coat and 8 layers of hard wearing water based lacquer

Customisations: This product can be customised with various options such as large bevels, rounded bevels, hand worked surface etc

Grades: Prime A, Prime B, Rustic A, Rustic AB

Prime A: Healthy knots (filled) with a maximum of 3 mm. No open defects, minimal colour variation. No sapwood and no end cracks allowed.

Prime B: Healthy knots (filled) with a maximum of 8 mm. No open defects, slight colour variation. No sapwood and no end cracks allowed.

Rustic A: Healthy knots (filled) with a maximum of ± 35 mm. Less colour variation. No sapwood and no end cracks allowed.

Rustic AB: Healthy knots (filled) with a maximum of ± 60 mm (240 mm and wider up to ± 80 mm). Colour variation allowed. Occasionally a little sapwood permitted and end cracks of max. 100 mm allowed.

Prime A

Prime B

Rustic A

Rustic AB

Formats:

Fixed Width Plank

Mixed Width Plank

Herringbone

Chevron

Design Panels

Custom Shapes

Widths:

Lengths:
