Caledonian Oak Panel Design C107

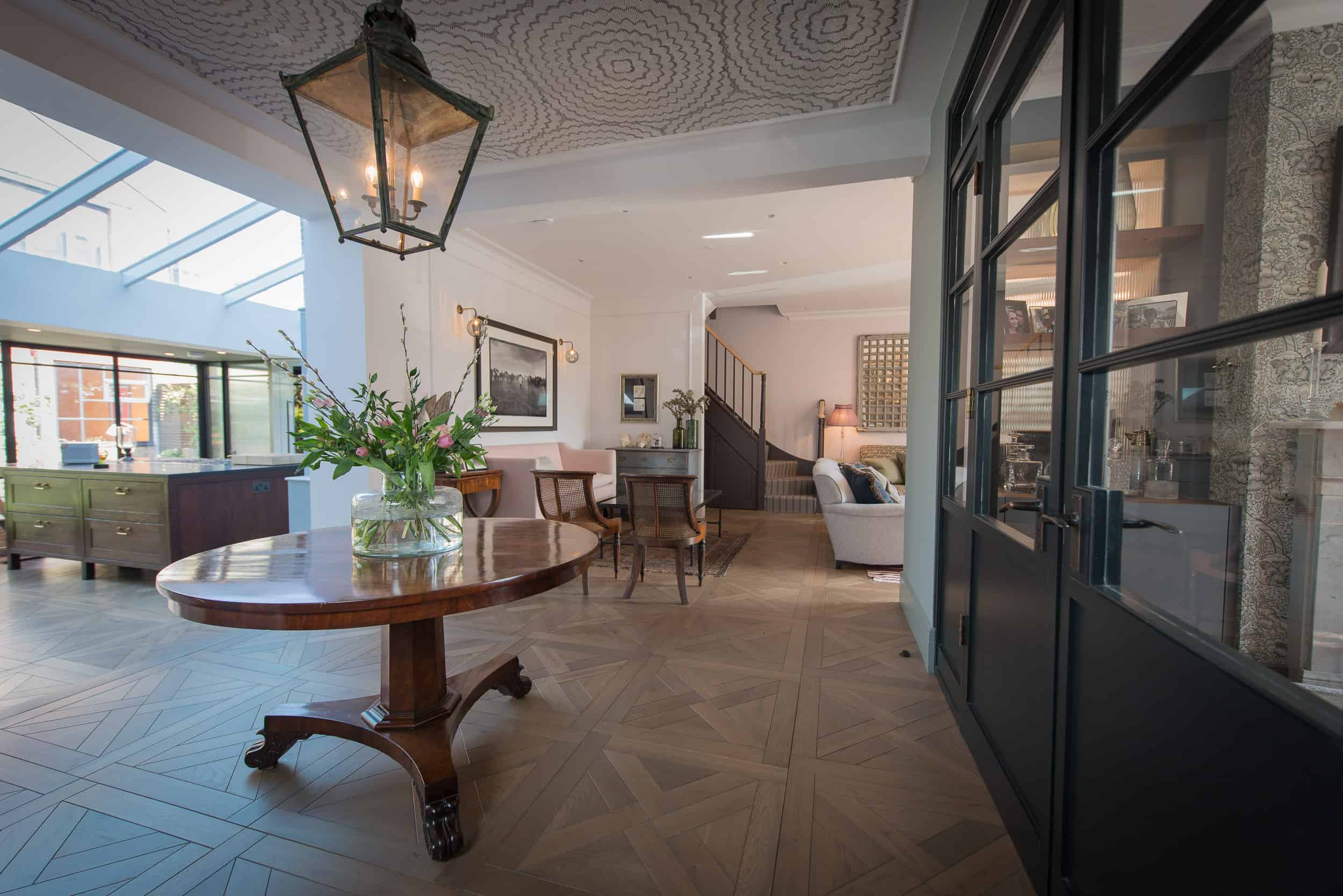

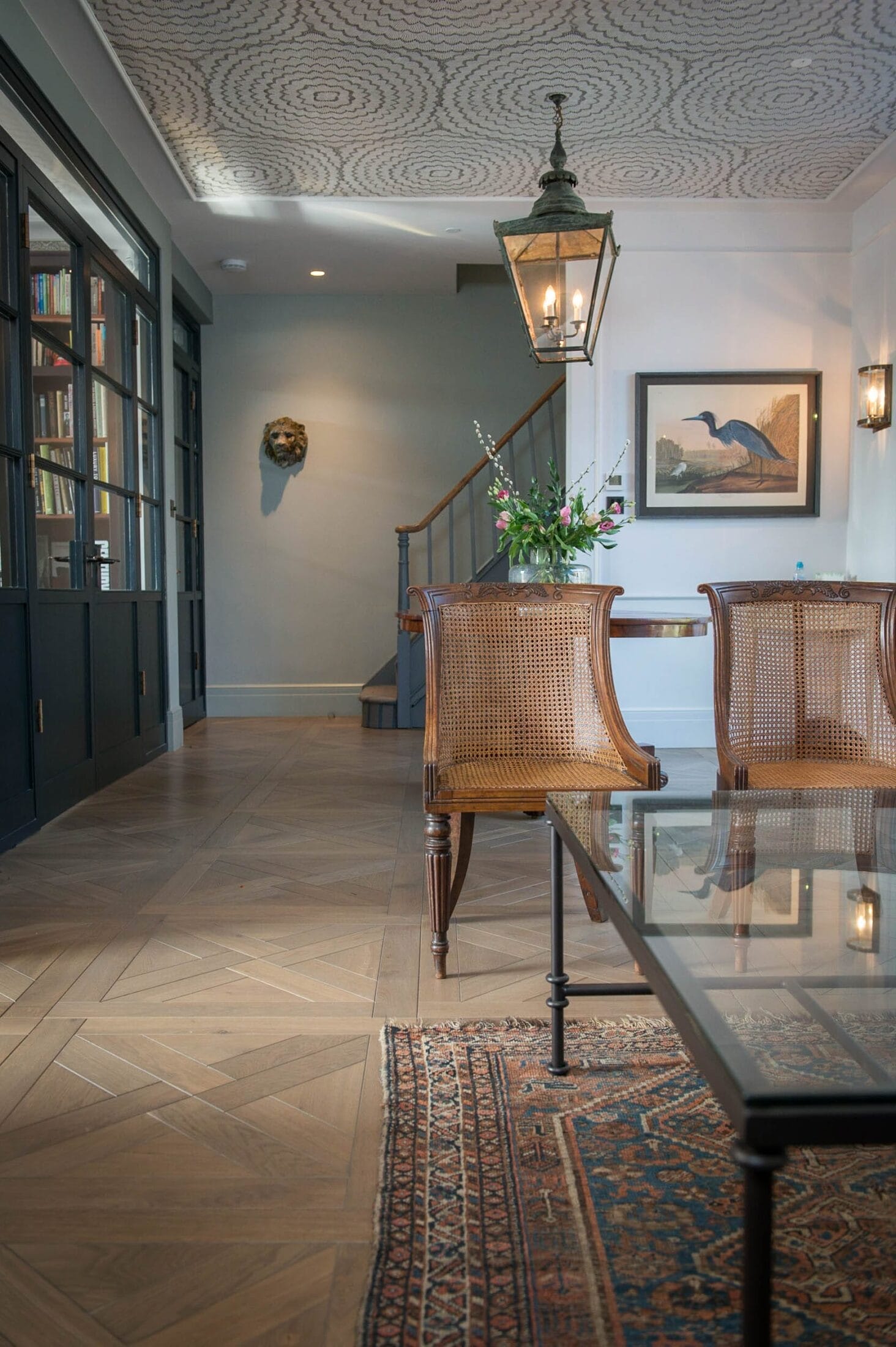

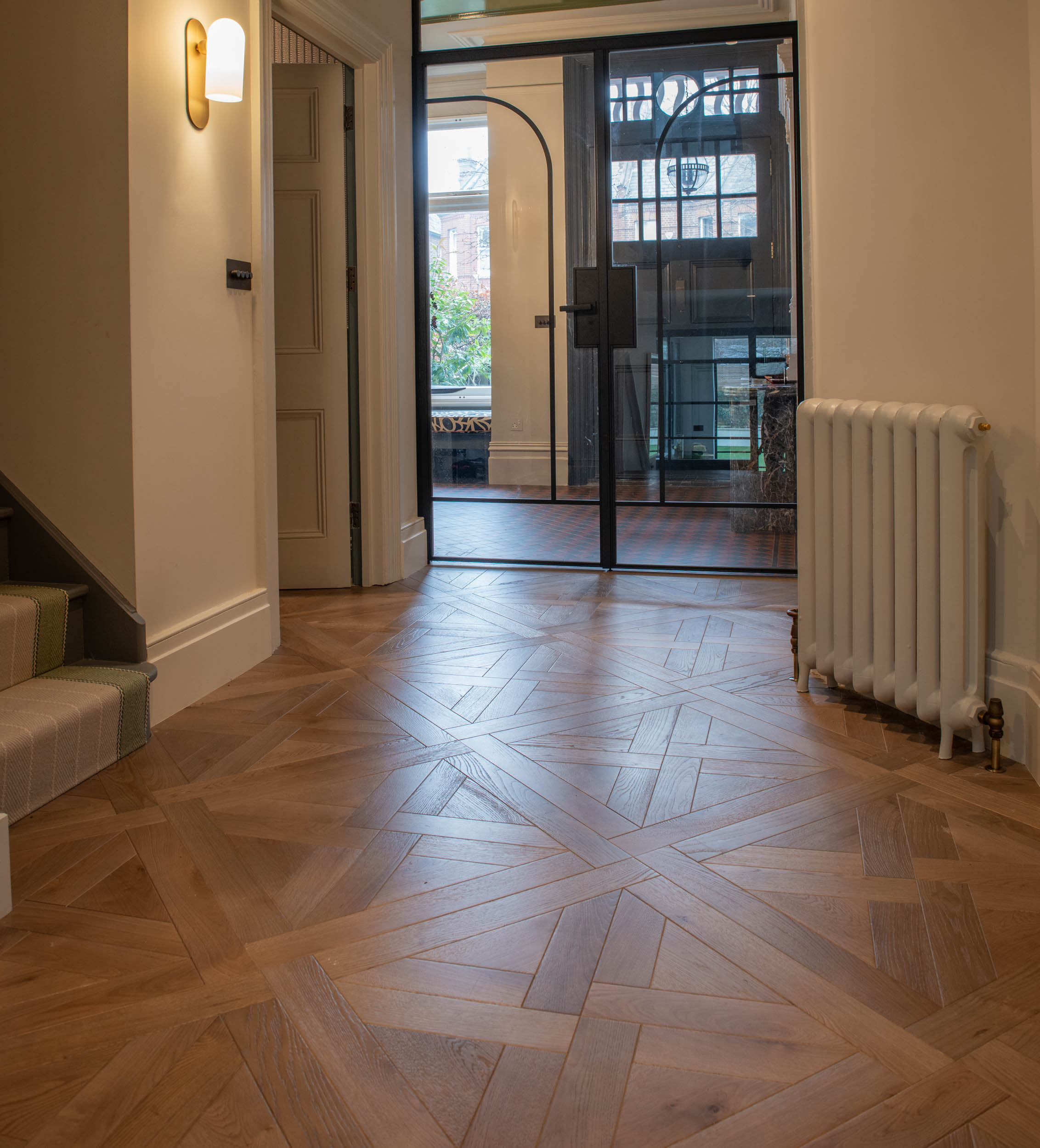

Caledonian Oak has a reactive stain with a warm tan colour with a hard wearing 9 coat lacquer finish. The parquet panel design is available with and without bevels on the internal elements. Parquet Panles are available in most of our colours and finishes. A classic parquet floor. This floor has a non-directional pattern and will have an attractive design from all angles, ideal if a directional floor needs to be avoided such as retail floors. Parquet panels requires expert fitting and attention to detail to ensure it is correctly fitted. This Oak flooring is made using engineered oak, smoked stained and finished with a lacquer finish. this floor is suitable for under floor heating. The dark tones in this floor create creates contrast and the bevels on the internal elements help define the design. For more inspiration view our parquet gallery

3 Layer Super Wide

Structure



5mm Oak wear layer
10mm Fir core layer
5mm Oak balance layer

Width x Length



700-800 x 2500 – 4500mm
390/440/500 x 2000 – 4000mm
240/290/340 x 2000 – 4000mm
Fixed width available on request

Thickness



20mm

Grades



Natural

3 Layer Classic

Structure



5mm Oak wear layer
10mm or 5mm Fir core layer
5mm Oak balance layer

Width x Length



290 x 1600 – 2800mm
240 x 1600 – 2800mm
135/165/192 x 1200 – 2400mm
192 x 1200 – 2400mm
165 x 1200 – 2400mm
135 x 1200 – 2400mm
Thermo Oak widths 130/160/185mm

Thickness



15 or 20mm

Grades



Prime A to 192mm
Prime B to 290mm
Rustic A to 290mm
Rustic AB/Natural all widths

2 Layer Classic

Structure



4mm Oak wear layer
11mm Birch ply balance layer

Width x Length



45 x 1200 -1600mm
135 x 1000 – 1800mm
200 x 1200-2400mm

Thickness



11 or 15mm

Grades



Prime A, Prime B, Rustic A

Herringbone

2 Layer
Structure

Width x Length





Thickness



4mm Oak wear layer
11mm Birch ply blance layer

45 x 350-580mm*
90 x 600-700mm*
135 x 700-1000mm*
165 x 600-1000mm*
192 x 600-1000mm*
240 x 720mm

* fixed length depends on stock availability

11 or 15mm

Chevron

2 Layer
Structure

Width x Length

Thickness

Angle



4mm Oak wear layer
11mm Birch ply blance layer

45 x 350-540mm*
90 x 500-600mm*
135 x 560-860mm*
165 x 600-900mm*
192 x 600-900mm*
240 x 720mm

* fixed length depends on stock availability

11 or 15mm

45° / 30° /60°

Finish: Primer coat and multiple layers of hard wearing water based lacquer

Customisations: This product can be customised with various options such as large bevels, rounded bevels, hand worked surface etc

Grades: Prime A, Prime B, Rustic A, Rustic AB

Prime A: Healthy knots (filled) with a maximum of 3 mm. No open defects, minimal colour variation. No sapwood and no end cracks allowed.

Prime B: Healthy knots (filled) with a maximum of 10 mm. No open defects, slight colour variation. No sapwood and no end cracks allowed.

Rustic A: Healthy knots (filled) mostly  ± 35 mm. Some knots may exceed 35mm. More colour variation. No sapwood and no end cracks allowed.

Rustic AB: Healthy knots (filled) to any size. More colour variation . Occasionally a little sapwood permitted and end cracks of max. 100 mm allowed.

Prime A

Prime B

Rustic A

Rustic AB

Formats:

Fixed Width Plank

Mixed Width Plank

Herringbone

Chevron

Design Panels

Custom Shapes

Widths:

Lengths:
